Liners

Liners

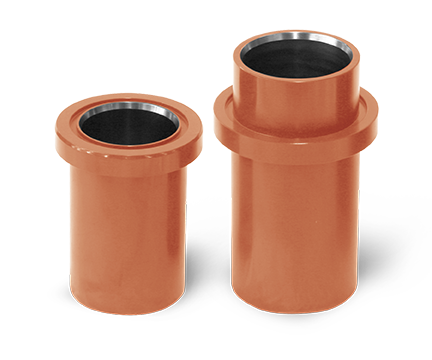

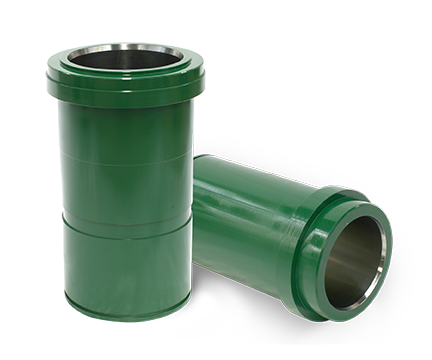

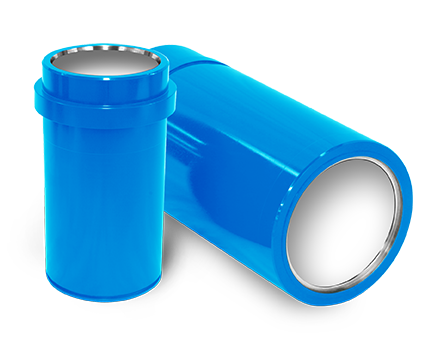

TexStar manufactures chrome alloy sleeved liners, hardened liners, hardened and chrome plated liners and Zirconia liners.TexStar also supplies genuine U.S. made rubber and urethane liner seals. All our liner products are exchangeable with OEM products and meet or exceed API-7K standards.

Contact Us

   281-310-5700

  [email protected]

   Download Catalogs
  Request a Quote

Chrome Alloy Sleeve Liners

  • High Strength forged steel outer hull.
  • High Chrome alloy inner sleeve honed to mirror-like finishes.
  • Minimum uniform bore hardness 62 RC.
  • HP design to prevent inner sleeve slippage.
  • Built tougher to outlast our competitors.

Hardened Liners

  • Single high strength forged steel hull construction.
  • Inner bore is nitro carburized and quenched to reach hardness of 60 RC.
  • Optional chrome plating to reach hardness of 62RC.
  • Corrosion resistance, free deformation.

Zirconia Liner

  • High strength forged steel outer hull.
  • Zirconia inner sleeve.
  • Significant longer service and lifetime cost saving.
  • Better resistance to heat and corrosion.
  • Smoothness of Zirconia inner bore translates into longer service lifetime for pistons.
Mud Pump Models 4” 4-1/2” 5” 5-1/2” 6” 6-1/2” 7” 7-1/2”
Continental Emsco F-800 / 1000 . 05495450 TEP 05495500 TEP 05495550 TEP 05495600 TEP 05495650 TEP 05495700 TEP .
Continental Emsco FB-1300 / 1600 05499400 TEP 05499450 TEP 05499500 TEP 05499550 TEP 05499600 TEP 05499650 TEP 05499700 TEP .
Gardner Denver PZ-7 PY13940 PY13945 PY13950 PY13955 PY13960 PY13965 PY13970 .
Gardner Denver PZ-8/9 05493400 TEP 05493450 TEP 05493500 TEP 05493550 TEP 05493600 TEP 05493650 TEP 05493700 TEP .
Gardner Denver PZ-10/11 05496400 TEP 05496450 TEP 05496500 TEP 05496550 TEP 05496600 TEP 05496650 TEP 05496700 TEP .
Ideco T-800 / 1000 05502400 TEP 05502450 TEP 05502500 TEP 05502550 TEP 05502600 TEP 05502650 TEP 05502700 TEP .
Ideco T-1300 / 1600 . 05507450 TEP 05507500 TEP 05507550 TEP 05507600 TEP 05507650 TEP 05507700 TEP .
National 8-P-80 05464400 TEP 05464450 TEP 05464500 TEP 05464550 TEP 05464600 TEP 05464650 TEP . .
National 9-P-100 / 10-P-130 05465400 TEP 05465450 TEP 05465500 TEP 05465550 TEP 05465600 TEP 05465650 TEP . .
National 12-P-160 05466400 TEP 05466450 TEP 05466500 TEP 05466550 TEP 05466600 TEP 05466650 TEP 05466700 TEP .
National 14-P-220 05545400 TEP 05545450 TEP 05545500 TEP 05545550 TEP 05545600 TEP 05545650 TEP 05545700 TEP .
Oilwell A-850-PT / A-1100-PT 05330400 TEP 05330450 TEP 05330500 TEP 05330550 TEP 05330600 TEP 05330650 TEP 05330700 TEP 05330750 TEP
Oilwell A-1400-PT / A-1700-PT 05326400 TEP 05326450 TEP 05326500 TEP 05326550 TEP 05326600 TEP 05326650 TEP 05326700 TEP 05326750 TEP
