TSF – 1600 Mud Pumps

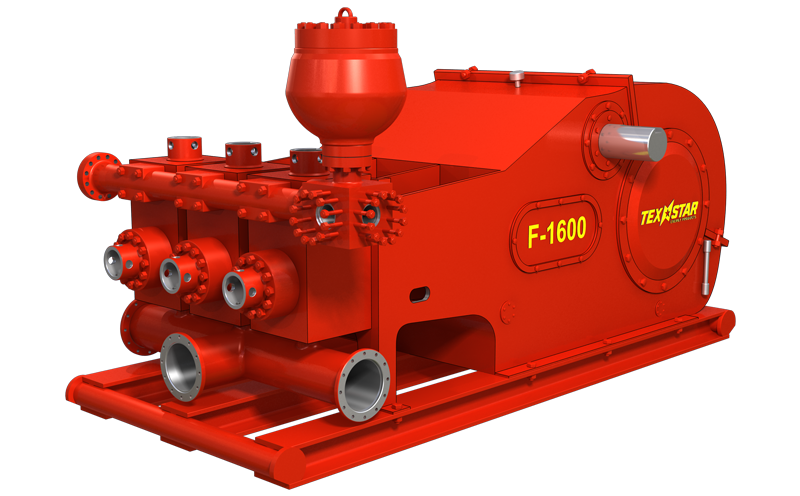

TSF-1600 mud pump is a high quality triplex single acting piston pump. Based on the proven design of Continental Emsco FB-1600 model, F-1600 mud pump is one of the most accepted and widely used mud pumps in the world.

Key Specification

Max Liner Size: 7” x 12”
Stroke Rating: 120 SPM
Power Rating: 1,600 HP
Gear type: Herringbone
Gear Ratio: 4.206:1
Lubricating: Forced and Splashing
Suction Inlet: 12”
Discharge Outlet: 5-1/8” – API-5K
Pinion Shaft Dia: 8-1/2”
Valve Pots: API #7
Approx Weight: 27,000 KG

Power End

  • High strength alloy steel frame provides high rigidity and free distortion.
  • Forged, alloy steel pinion shaft with 4.206:1 Herringbone gear.
  • One-piece alloy steel crankshaft.
  • Full roller bearing construction.
  • Forged, alloy steel pinion shaft.
  • Forced and splashing oil lubrication powered by an geared oil pump.
  • Cast crosshead and guide provide excellent abrasion resistance and long service life.

Fluid End

  • Three one-piece forged alloy steel modules, max. pressure 5,000 PSI.
  • Liner Wear plate design improves service life of modules.
  • Liner and piston are cooled and lubricated by water spray system
  • Valve over valve with API #7 valves and seats.
  • Front mount discharge manifold connected with 5-1/8” API-5K flange.
  • 20 Gallon, 5,000 PSI Pulsation Dampener.
  • 5,000 PSI, 5-way discharge strainer cross with RTJ connection.
